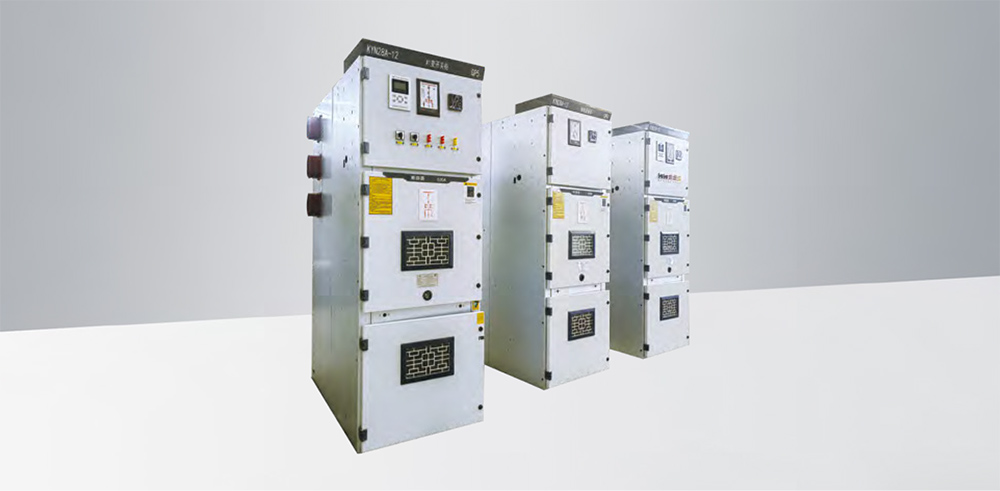

Type KYN28-12 Armored Open AC Metal Enclosed Switchgear

KYN28A-12 (Z) (GZS1) type armored move-open type AC metal-enclosed switchgear (hereinafter referred to as “switchgear”) It is suitable for three-phase AC 50HZ power system, used for receiving and distributing electrical energy and circuit control, protection and monitoring.

This product conforms to the standards: GB3906 “3-35kV AC metal-enclosed switchgear”, GB/T11022 “Standard Common Technical Requirements for High Voltage Switchgear and Control Equipment”, IEC60298 “Rated Voltage 1kV and Above AC Metal-enclosed Switchgear and Control Equipment”.

• K— Vacuum interrupter
• Y— Push-to-open (move-open type)
• N— Within the home (indoor)
• 28A— Design number
• 12— Rated voltage
• (Z)— Metal armor

• Surrounding air temperature: maximum temperature +40℃, minimum temperature -15℃.
• Relative humidity: average daily relative humidity ≤95%; average daily water vapor pressure not exceeding 2.2kPa; average monthly relative temperature ≤90%; average monthly water vapor pressure not exceeding 1.8kPa.
• Altitude: below 1000m.
• Seismic intensity: no more than 8 degrees.
• The surrounding air should be free from obvious pollution such as corrosive or combustible gases and water vapor.
• No violent vibration.
• Beyond the GB3906 provisions of the normal conditions of use, by the user and the company to negotiate.
