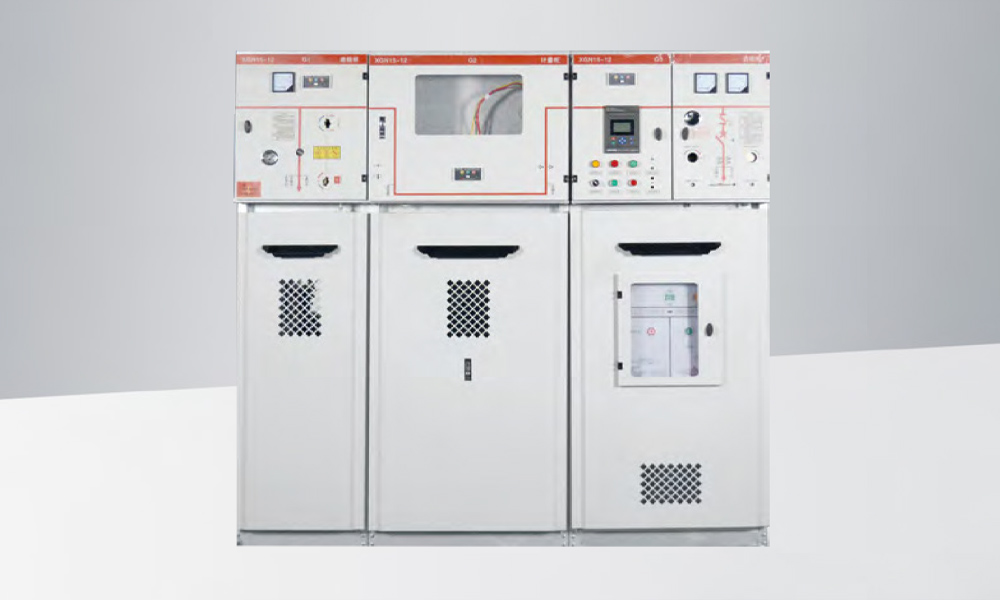

HXGN15-12 High Voltage Cabinet

HXGN15-12 unit type, modular sulfur hexafluoride AC metal-enclosed ring network switchgear is a generation of metal-enclosed switchgear with sulfur hexafluoride switch as the main switch and the whole cabinet adopts air-insulation, which is suitable for power distribution automation and is both compact and expandable, featuring simple structure, flexible operation, reliable interlocking and convenient installation, which can provide satisfactory technical solutions for different application occasions and requirements of users. It can provide satisfactory technical solutions for different applications and different user requirements.

The use of sensing technology and protection relays, together with advanced technical performance and lightweight and flexible assembly solutions, can be completed to meet the ever-changing needs of the market.

• HXGN15-12 type ring network switchgear cabinet shell cold rolled plate is molded by CNC machine processing, and the panel is sprayed with plastic.
• The switchgear cabinet consists of four mutually isolated intervals: busbar room, switch body, cable room, operation mechanism and control room.
• Pressure relief channel is set at the back of the cabinet.
• The cabinet is reasonable in structure, compact and applicable, small in size.
• Characterized by convenient and flexible operation, perfect and reliable five-proof interlocking, simple and convenient installation, stable operation and installation, and expandable.
