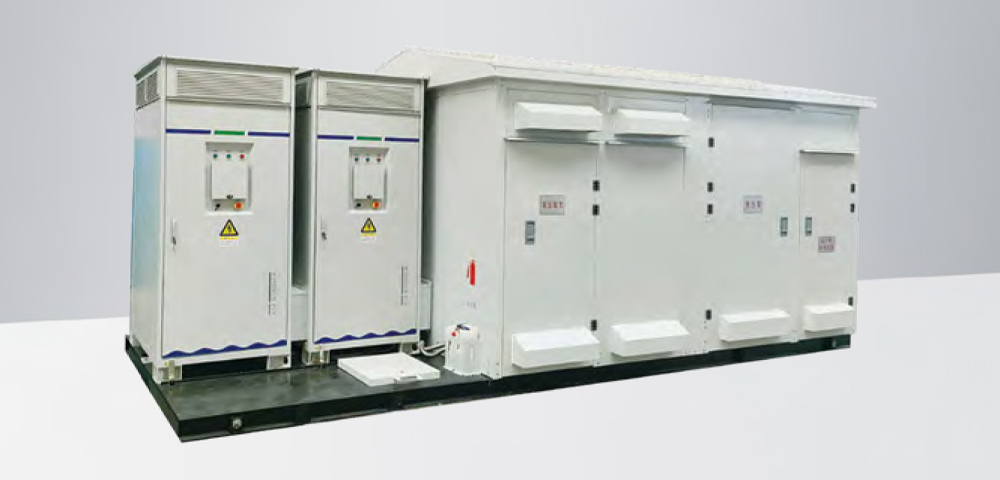

Wind-solar storage inverter-booster integrated machine is mainly applied to wind-solar storage base. In order to adapt to the modular, integrated and convenient design demand of large-scale energy storage power station, the storage inverter booster integrated machine pre-installs the energy storage module, step-up transformer, energy storage converter, high and low-voltage distribution unit, communication unit and so on in a movable cabinet, which can realize the rapid construction of energy storage power station, with virtual synchronization function, and can realize the autonomy of new energy stations.
| Rated capacity (KVA) | Voltage combination (KV) | Linkage group | No-load loss (kW) | Load loss (kW) | No-load current (%) | Short circuit impedance (%) | ||
|---|---|---|---|---|---|---|---|---|
| High voltage (KV) | Tap range (%) | Low voltage (KV) | ||||||
| 100 | 35 | ±2×2.5 | 0.4 | Dyn11 / Yyn0 | 0.20 | 1.50 | 1.1 | 6.5 |
| 160 | 0.29 | 2.20 | 1.0 | |||||
| 200 | 0.33 | 2.60 | 1.0 | |||||
| 250 | 0.40 | 3.05 | 0.9 | |||||
| 315 | 0.48 | 3.60 | 0.9 | |||||
| 400 | 0.58 | 4.30 | 0.8 | |||||
| 500 | 0.68 | 5.15 | 0.8 | |||||
| 630 | 0.83 | 6.20 | 0.7 | |||||
| 800 | 0.98 | 7.50 | 0.7 | |||||
Note: The above data is for reference only. Customized specifications can be provided according to customer requirements. Please consult our sales team for details.
